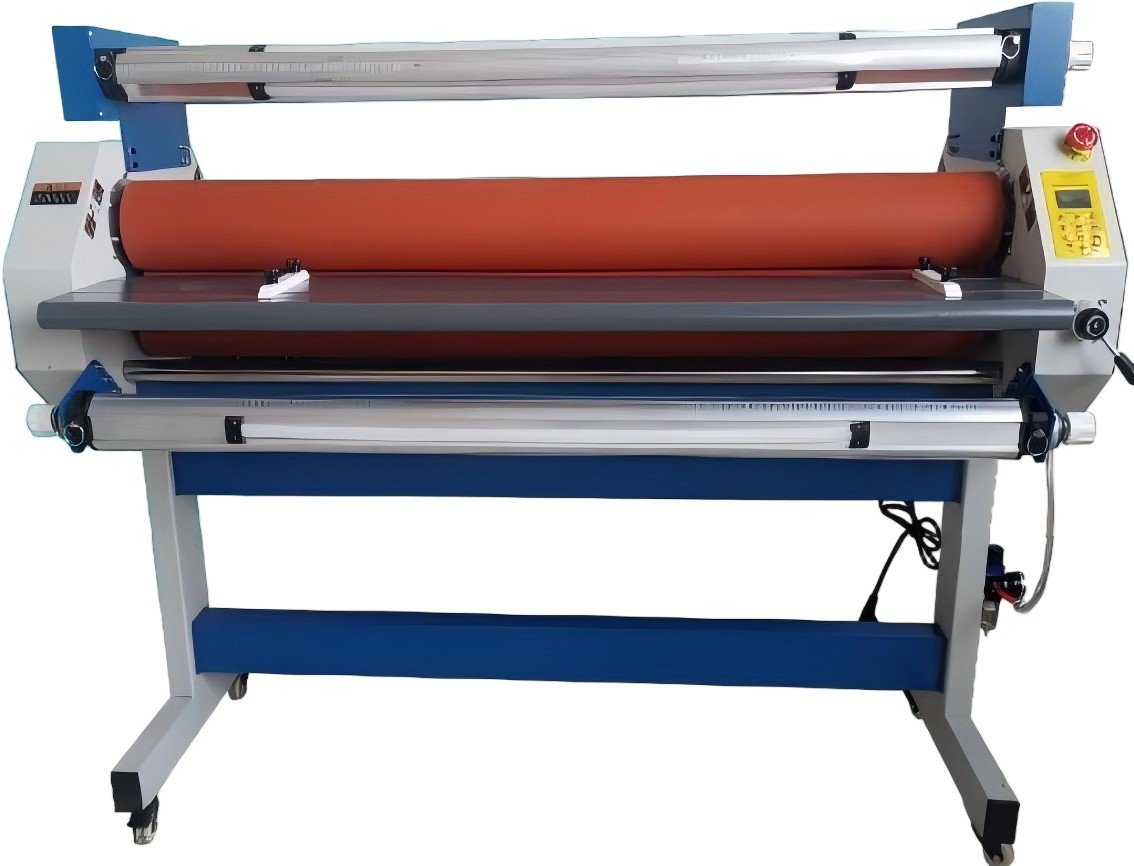

Laminating Machine(DSG-880B)

Intelligent Laminating Machine for Both Thermal & Cold Lamination

  • Pneumatic lifting and pneumatic pressurization, high pressure, convenient and quick operation.
  • Non-contact far-infrared temperature measurement, independent temperature control system for upper and lower rubber rollers.
  • LCD screen display, touch control.
  • Adopts 300W DC gear reduction motor, which improves motor torque, working performance and service life.
  • Single / double-sided high-temperature thermal lamination, low-temperature cold lamination.
  • Automatic film peeling for cold lamination, automatic rewinding of finished products.
  • Professional for crystal film, ideal high-temperature thermal laminator for decorative paintings.
  • Rubber rollers are made of imported non-stick high-temperature resistant silicone rubber.
  • Four rubber rollers with traction and shaping rollers, making laminated products flatter.
This series of laminating machines adopts infrared hot air heating technology, which provides even and gentle heating to ensure firm bonding between film and various printing materials. The finished surface is smooth and glossy, free of bubbles, wrinkles and peeling, greatly improving product appearance and service life.
Equipped with large-diameter rollers, the machine runs steadily with uniform pressure and is easy to operate. It remains reliable even under continuous working conditions and adapts to a wide range of materials and processing requirements.
It is widely used for laminating and protecting large-format products including advertising boards, posters, packaging prints and decorative panels, enhancing both appearance and durability. With a solid structure and wide compatibility with different power supplies, it is an efficient and practical choice for advertising shops, printing stores and small processing factories.

Model:

Laminating Width:

Laminating Speed:

Rollers Diameter:

Max.heating temperature:

Heating Method:

Heating Power:

Motor Power:

Weight:

Power Supper:

DSG-880B

850mm

0-5M/min

130mm

160℃

Infrared Heating by HotAir

3800W

300W

120KG

AC110,220V150,60HZ

DSG-1100B

1050mm

0-6M/min

130mm

160℃

Infrared Heating by HotAir

4300W

300W

140KG

AC110,220V150,60HZ

DSG-1400B

1350mm

0-6M/min

130mm

160℃

Infrared Heating by HotAir

5000W

300W

260KG

AC110,220V150,60HZ
