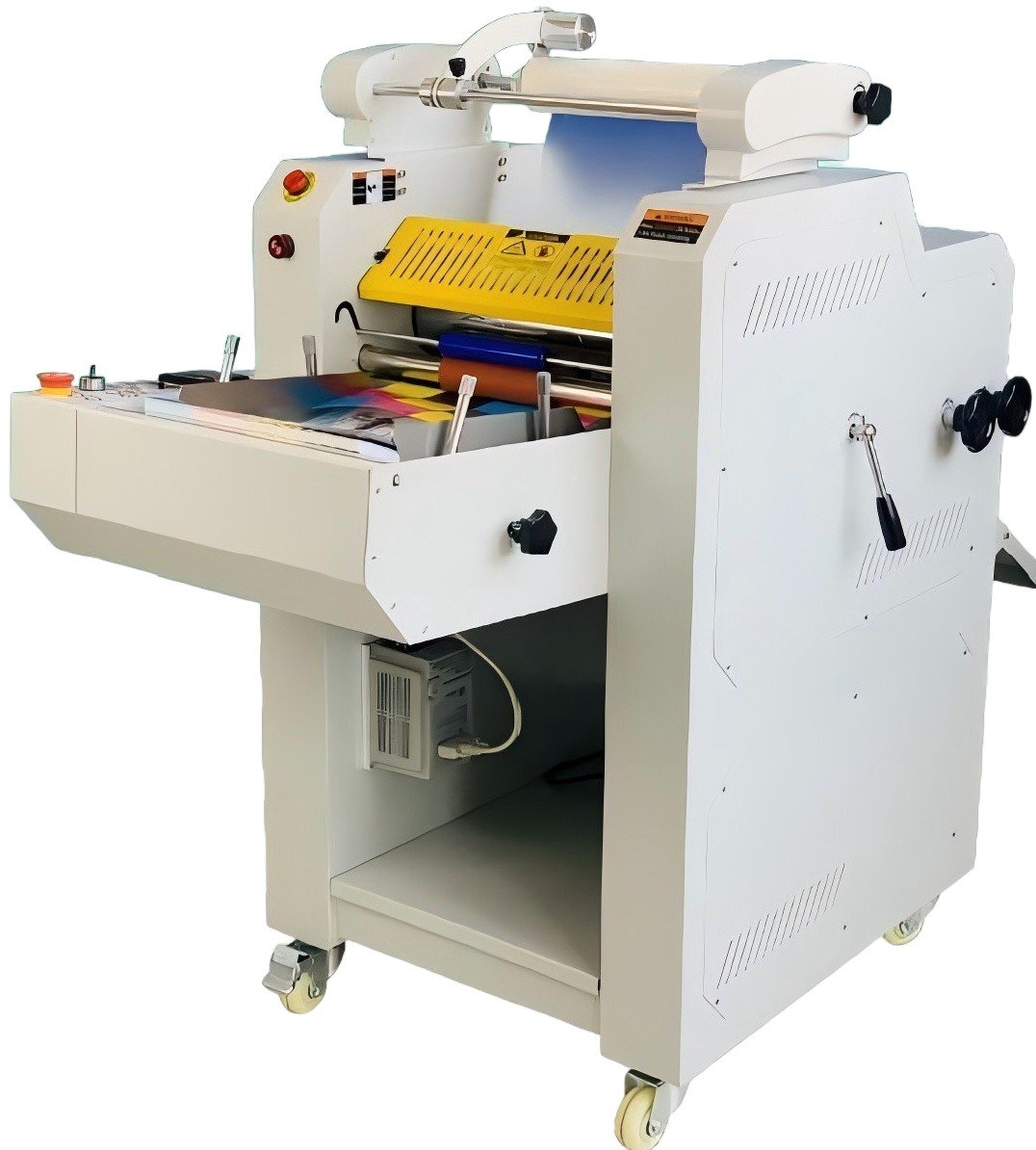

Laminating Machine(DSG-390A)

Fully Automatic Laminating Machine

  • Fully automatic laminating machine with automatic paper feeding and automatic cutting.
  • Super mirror-finish steel roller with a diameter of 110mm.
  • Thickened die springs provide strong laminating pressure and excellent laminating effect.
  • Intelligent temperature control system with over-temperature alarm for dual safety protection.
  • High-power 250W three-phase AC gear reduction motor with stepless frequency speed regulation, maximum laminating speed up to 5m/min.
  • Single-sided anti-curling (adjustable via electric button), equipped with trimming cutter.
This series of laminating machines adopts mature infrared hot air heating technology, which ensures uniform and stable heating, enabling tight and firm bonding between the film and the substrate. The lamination surface is smooth and flat, without bubbles, wrinkles or peeling, effectively protecting the printed materials and enhancing their gloss and durability.
With a compact and practical design, the machines are easy to install and operate, requiring no professional operation experience, which is very suitable for small-scale use scenarios. The optimized roller design ensures stable operation, uniform pressure during lamination, and can perfectly adapt to various small-format materials such as business cards, brochures, photos and small posters.
Whether it is daily document protection in the office, small-batch print finishing in the print shop, or personalized photo laminating in the studio, this series of laminating machines can meet the needs. It has a solid structure, durable use, and is compatible with common power supply environments, providing a convenient and efficient laminating solution for small-scale users.

Model:

Laminating Width:

Laminating Speed:

Rollers Diameter:

Max.heating temperature:

Heating Method:

Heating Power:

Motor Power:

Weight:

Power Supper:

DSG-390A

350mm

0-5M/min

110mm

160℃

Infrared Heating by HotAir

1500W

250W

260KG

AC220V/50,60HZ

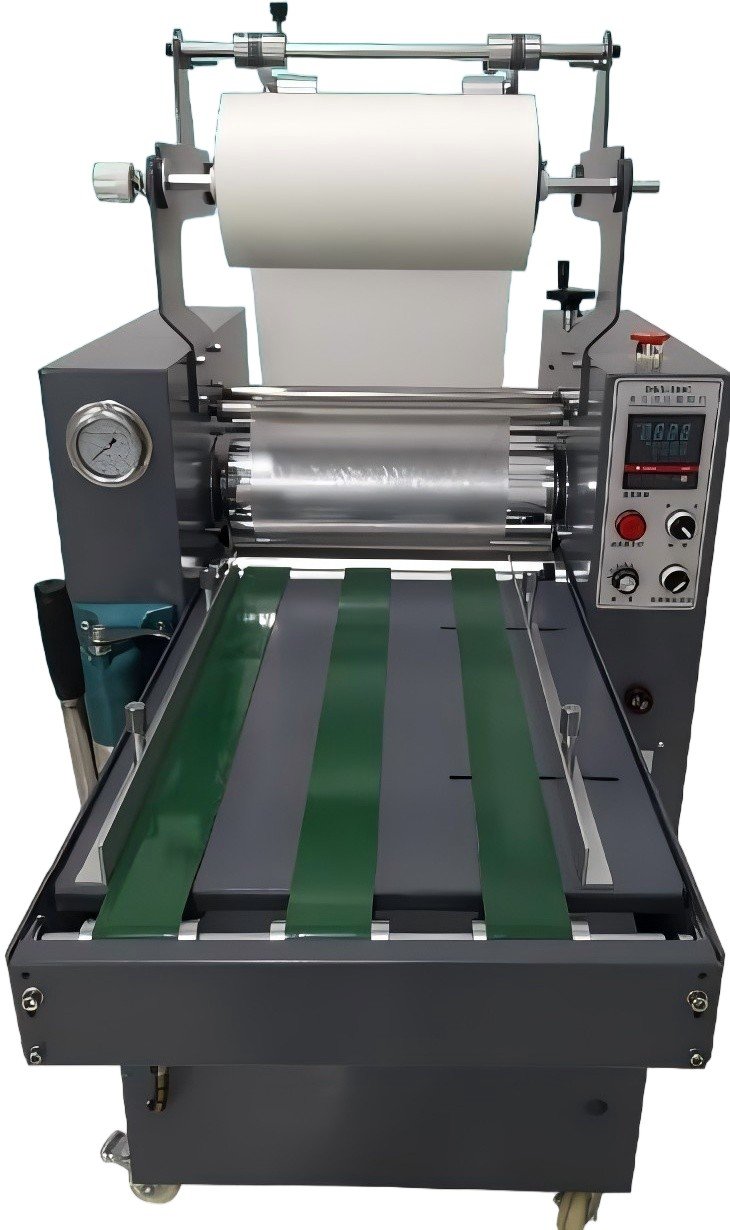

DSG-390C

350mm

0-6M/min

110mm

160℃

Infrared Heating by HotAir

2500W

180W

180KG

AC220V/50,60HZ
