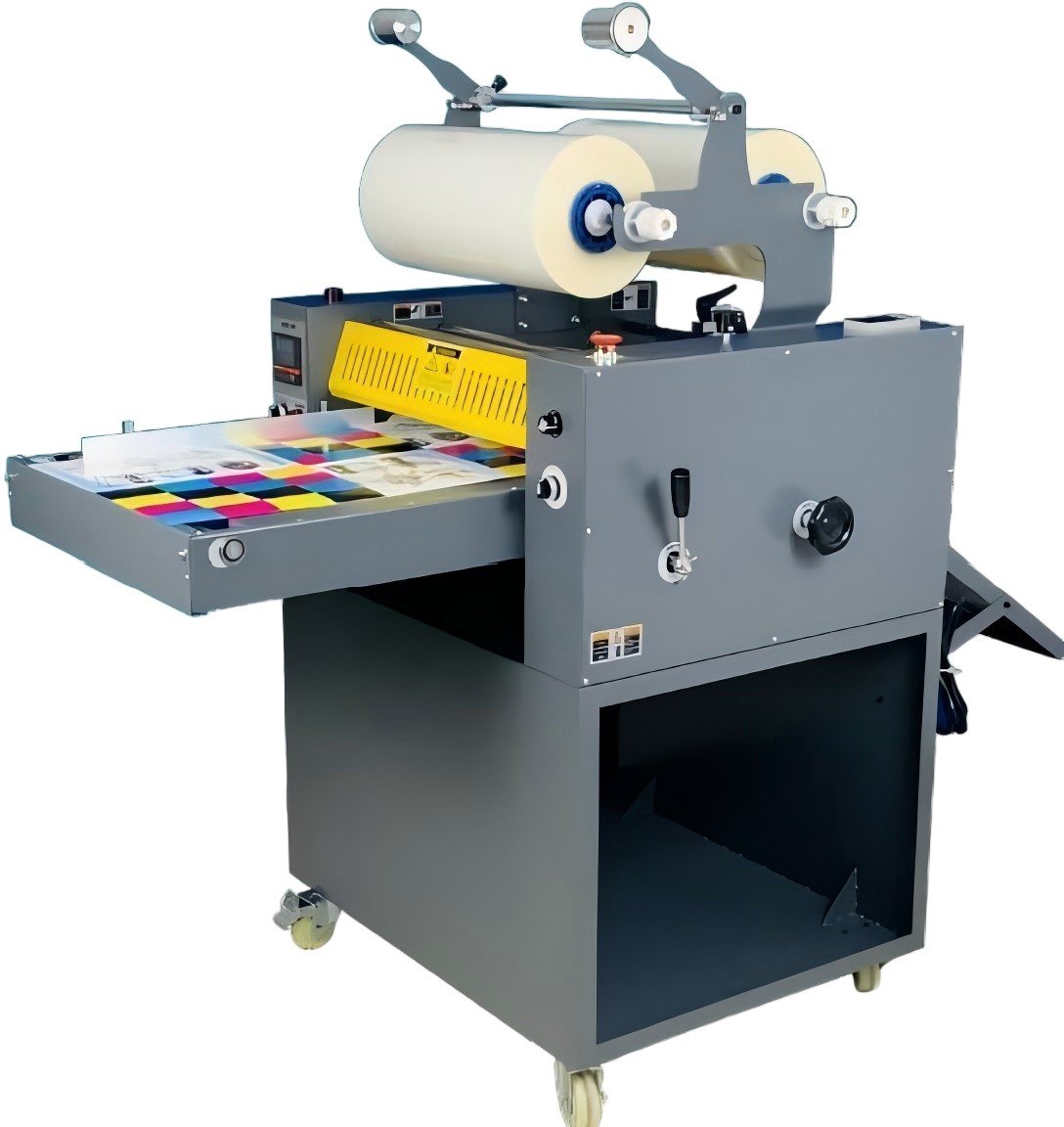

Laminating Machine(DSG-390B)

Semi-automatic laminating machine with synchronous conveyor belt automatic paper feeding and automatic cutting

  • Synchronous conveyor belt for automatic paper feeding, intelligent automatic cutting system, no air compressor required.
  • Intelligent temperature control with infrared internal heating.
  • Single-sided anti-curling function.
  • 180W gear reduction motor.
  • Thickened die springs with eccentric wheel pressure system.
  • Synchronous conveyor belt feeding platform.
  • Equipped with trimming cutter and dotted perforating cutter.
  • Super mirror steel roller diameter 110mm, lower rubber roller diameter 75mm.
  • Lower rubber roller made of imported non-stick high-temperature resistant silicone rubber.
This series of laminating machines adopts infrared hot air heating technology, which ensures full and even bonding between film and printed materials. The finished surface is smooth and glossy, effectively avoiding bubbles, wrinkles and delamination, protecting the graphics while enhancing the overall appearance.
The machines run stably and quietly with even and moderate pressure, compatible with various common papers. They are simple to operate and ready for use without complicated adjustment.
They are widely used in printing shops, advertising studios, offices and small processing facilities, perfect for laminating documents, menus, brochures, photos, posters and other products.
With solid structure, compact size and wide adaptability to different power supplies, they are cost-effective and ideal choices for small-batch and high-frequency laminating work.

Model:

Laminating Width:

Laminating Speed:

Rollers Diameter:

Max.heating temperature:

Heating Method:

Heating Power:

Motor Power:

Weight:

Power Supper:

DSG-390B

350mm

0-6M/min

110mm

160℃

Infrared Heating by HotAir

1600W

80W

150KG

AC110,220V150,60HZ

DSG-490B

490mm

0-6M/min

110mm

160℃

Infrared Heating by HotAir

2000W

80W

180KG

AC110,220V150,60HZ
