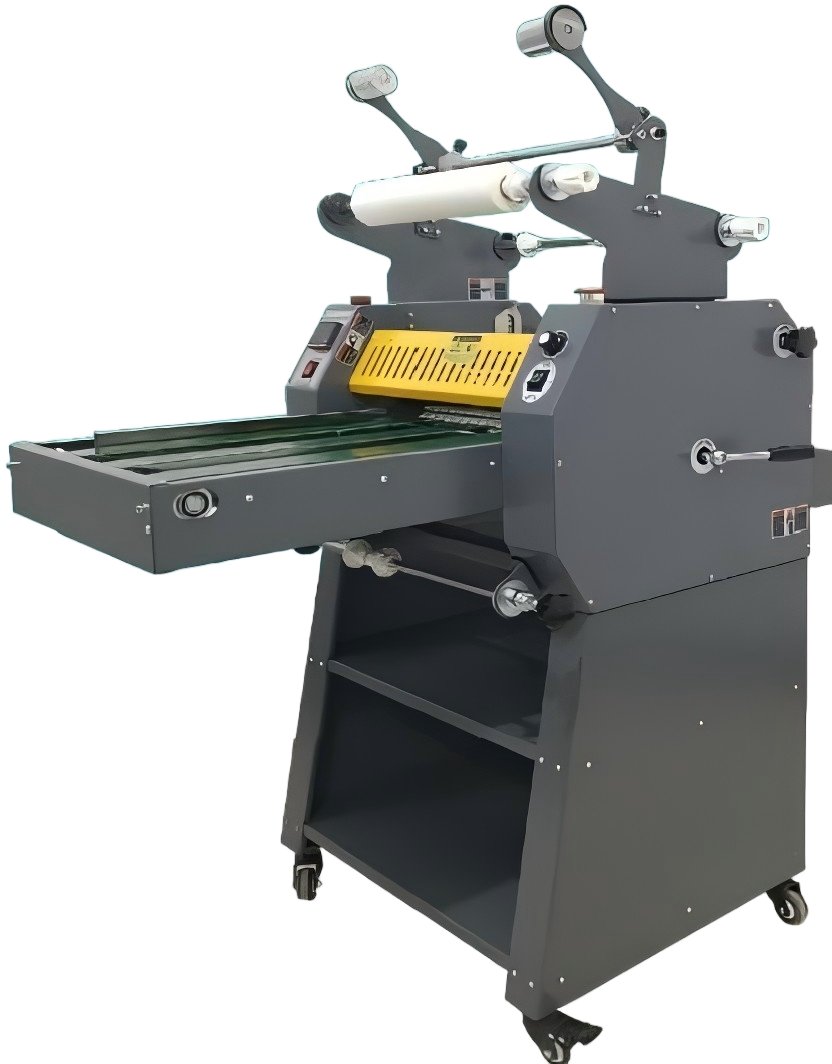

Laminating Machine(DSG-350)

Single / Double Sided Anti-Curling Laminating Machine with Steel Roller

  • Suitable for laminating various paper surfaces, single-sided / double-sided lamination, self-adhesive roll-to-roll lamination. Finished product rewinding with single-sided anti-curling, ensuring flat and straight lamination effect.
  • All-in-one multifunctional design, with optional plate-free bronzing function.
  • Synchronized paper feeding by conveyor belt, with automatic rewinding of finished products.
  • Large-diameter mirror steel roller with 100mm diameter, providing excellent mirror surface finish.
  • Strong laminating pressure delivers perfect effect, free of bubbles and snowflakes.
  • Intelligent temperature control system with precise control, maximum temperature 160℃, equipped with over-temperature alarm and double safety protection.
  • High-power 80W AC gear motor, supporting forward / reverse rotation and stepless speed regulation, with maximum laminating speed up to 6m/min.
  • Single-sided anti-curling design ensures flat and non-warping lamination effect.
DSG-350/490 series laminating machines are designed for daily small-format laminating tasks with excellent convenience and cost-effectiveness. Adopting infrared hot air heating technology, they provide even and gentle heating to ensure tight bonding between film and various printing substrates. The finished products are smooth and flat, free of bubbles, wrinkles and delamination, which effectively protect printed materials from wear and moisture, while enhancing surface gloss and overall appearance.
The machine runs smoothly with low noise. Equipped with optimized rollers, it provides even and moderate pressure, making it suitable for various small-format materials such as business cards, menus, bidding documents, leaflets and photos. It delivers perfect lamination for both thin and thick paper. Easy to operate without professional experience, it maintains stable performance even in long-term small-batch continuous work with low failure rate.
Compact in structure and small in size, it can be flexibly placed in printing shops, copy centers, office printing rooms and other small spaces. Sturdy and durable for frequent daily use, it supports standard AC220V power supply without extra circuit modification. Ideal for laminating office documents and promotional materials, it offers a low-cost, convenient laminating solution for small users.

Model:

Laminating Width:

Laminating Speed:

Rollers Diameter:

Max.heating temperature:

Heating Method:

Heating Power:

Motor Power:

Weight:

Power Supper:

DSG-350

350mm

0-6M/min

100mm

160℃

Infrared Heating by HotAir

1600W

80W

120KG

AC220V/50,60HZ

DSG-490

490mm

0-6M/min

100mm

160℃

Infrared Heating by HotAir

2000W

80W

160KG

AC220V/50,60HZ
