Hydraulic paper cutter 8210HD

  1. Thickened beam
  2. Hard anodized aluminum knife holder
  3. Wear-resistant nylon adjustment plate
  4. Thickened and reinforced columns
  5. Thickened base plate
  6. Hard anodized aviation aluminum platform
  7. Double ball screws and double guide rails
  8. 0.4KW servo motor for paper feeding
  9. 15.6-inch touch screen
  10. Standard safety suspended photoelectric sensor, 6 channels
  11. Electronic foot pedal
  12. 380V three-phase power supply with silent oil pump
  13. Dual hydraulic system
  14. Equipped with air pump
  15. Equipped with auxiliary platform

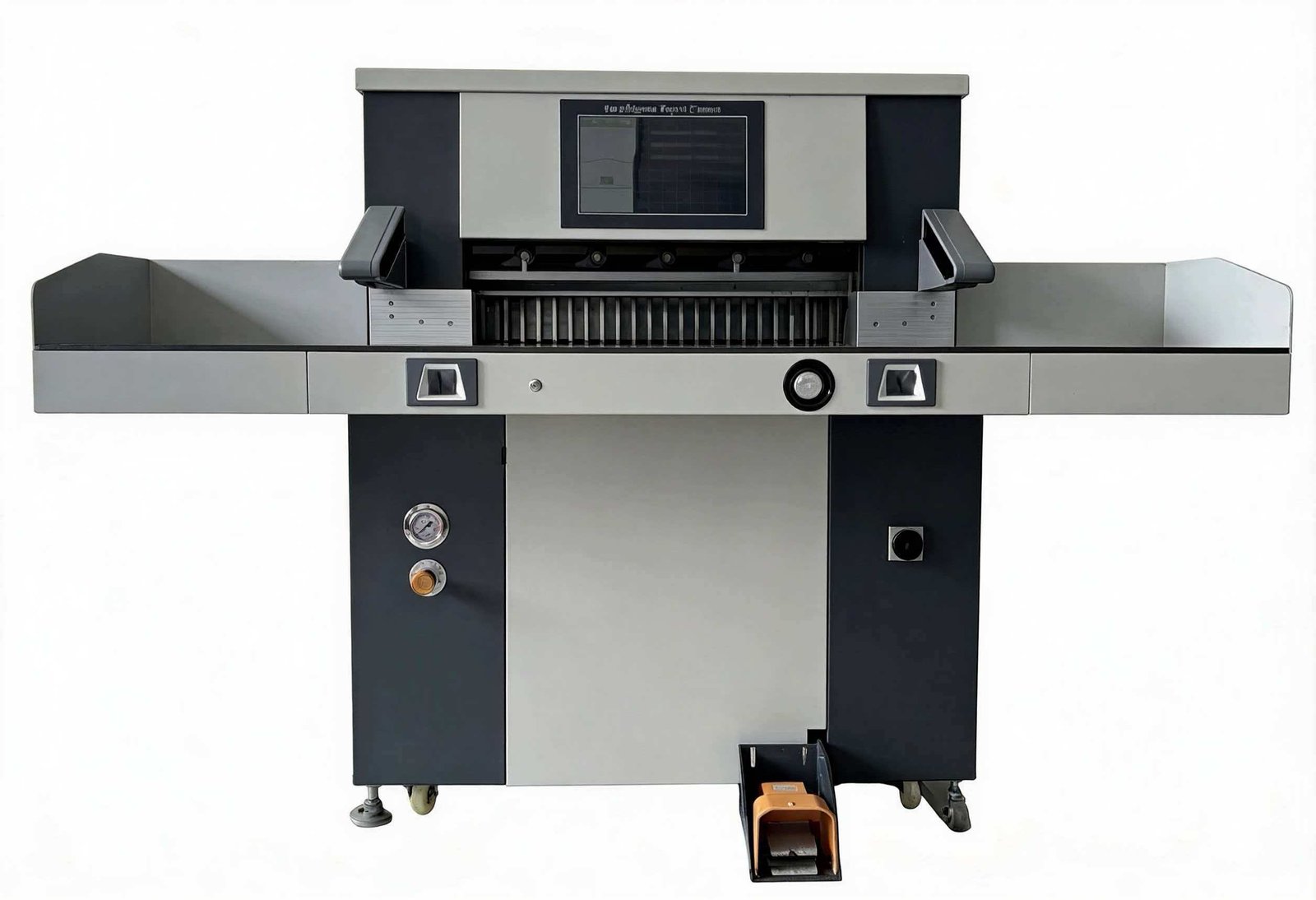

8210HD Heavy-duty Hydraulic Paper Cutter

The 8210HD is a professional heavy-duty hydraulic paper cutter engineered for high-intensity industrial production. With an effective cutting width of 820mm, it combines a robust frame structure and a powerful hydraulic system to deliver strong and stable clamping force, ensuring neat and accurate cutting even for thick paper stacks.
Designed for long-hour continuous operation, this machine features reliable performance, low failure rate and easy operation, effectively improving cutting efficiency and product consistency. It is equipped with complete safety protection devices to ensure secure operation during production.
Widely used in large printing plants, packaging factories, binding centers and publishing houses, the 8210HD is ideal for processing various materials including paper, cardstock, grey board and other sheet materials, making it a core equipment for heavy-duty cutting and trimming.

Model:

Max. Cutting Width:

Min. Cutting Width:

Max. Cutting Thickness:

Cutting Accuracy:

Clamp Mode:

Push Mode:

Display:

Power Supply:

Power:

Size in front of the blade:

Size after the blade:

Operation Height:

Lconfiguration:

8210HD

820mm

30mm

100mm

0.2mm

Hydraulic

Program Control with Servo Motor

15.6″ Touch Screen

380V 3 phases

3000W, variable frequency motor, 3 phases output

560mm

820mm

960mm

With air pump, with side table, with mechanical safety knife lock, with electric foot pedal
