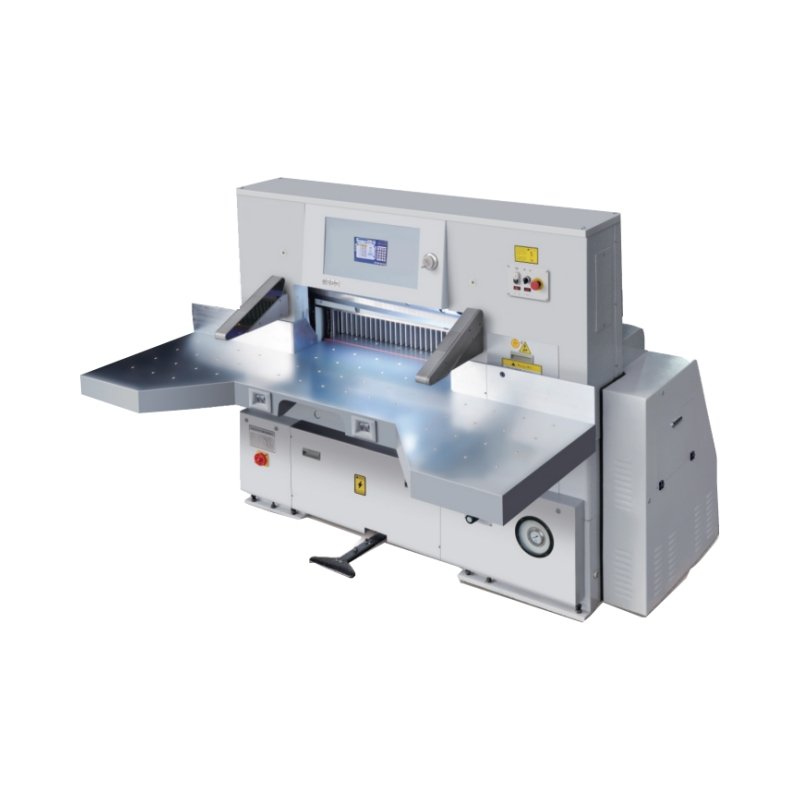

This hydraulic cutter is equipped with seamless worktable and dual‑guide paper‑feeding system for fast, precise pusher positioning. It adopts high‑wear‑resistant worm‑gear reduction transmission with hydraulically‑controlled friction clutch. Paper‑pressing pressure can be adjusted from 200 N to 30 000 N to guarantee consistent cutting results.
It features two‑hand operation, photoelectric protection, electronic knife‑gap setting and single‑cycle cutting safety functions. Fitted with imported high‑speed ball screw and linear guides, the machine holds European safety certification.
High‑speed hydraulic paper cutters are engineered for heavy‑duty post‑press production. Equipped with imported ball screw and guide rails, they deliver precise pusher positioning. The worm‑gear drive and hydraulic friction clutch provide wide‑range pressing‑force adjustment for various‑thickness paper stacks. Multiple safety features including two‑hand control and photoelectric protection ensure operator safety. With low‑noise operation and powerful cutting capacity, these robust machines support long‑time continuous‑run printing‑house work.
Model：
Max cutting width：
Max cutting length：
Max cutting height：
Main motor：
Weight：
cutting speed：
packing size：
voltage：
920E
920mm
1000mm
165mm
4 kw
3000 kg
55
256×152×202cm
380V
1370E
1370mm
1400mm
180mm
5.5 kw
4600KG
55
294×156×215cm
380V
