Hard-Anodized Aviation-Grade Aluminum Alloy Platform
Dual Ball Screws and Dual Linear Guides
Standard Suspended Safety Photoelectric Sensors(6 Channels)
Mechanical Foot Pedal
Dual Hydraulic System
Optional Air Fan
Optional Auxiliary Platform
1. This hydraulic paper cutter features robust clamping force, exceptional cutting precision, and powerful performance, designed specifically to meet the high-volume paper processing demands of the printing, bookbinding, and packaging industries.
2. As a professional hydraulic guillotine cutter, it integrates programmable controls, safe operation, and consistent cutting quality, making it the ideal choice for achieving high-output production.
3. Renowned for its smooth cutting action, long service life, and ease of operation, this fully hydraulic paper cutter is widely utilized for the cutting and trimming of various types of paper, cardstock, and thin sheet materials.
Model：
Max. Cutting Width：
Min. Cutting Width：
Max. Cutting Thickness：
Cutting Accuracy：
Clamp Mode:
Push Mode：
Display：
Power Supply:
Power:
Size in front of the blade：
Size after the blade：
Operation Height：
Option：

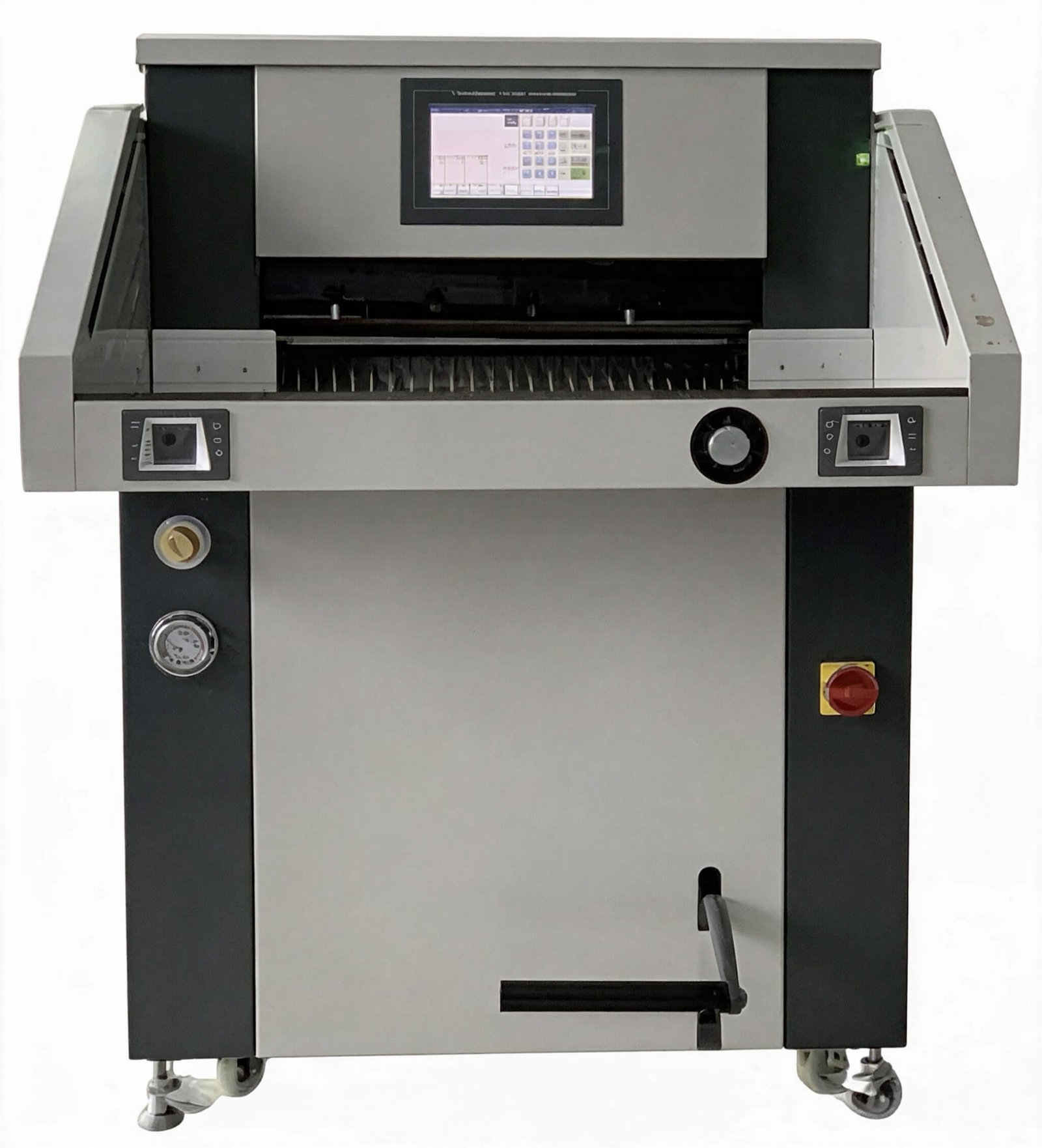

5208HP
520mm
30mm
100mm
0.2mm
Hydraulic
Program Control with Stepper Motor
10.1″ Touch Screen
220V, single phase
1800W
510mm
520mm
960mm
Air Fan, Auxiliary Platform

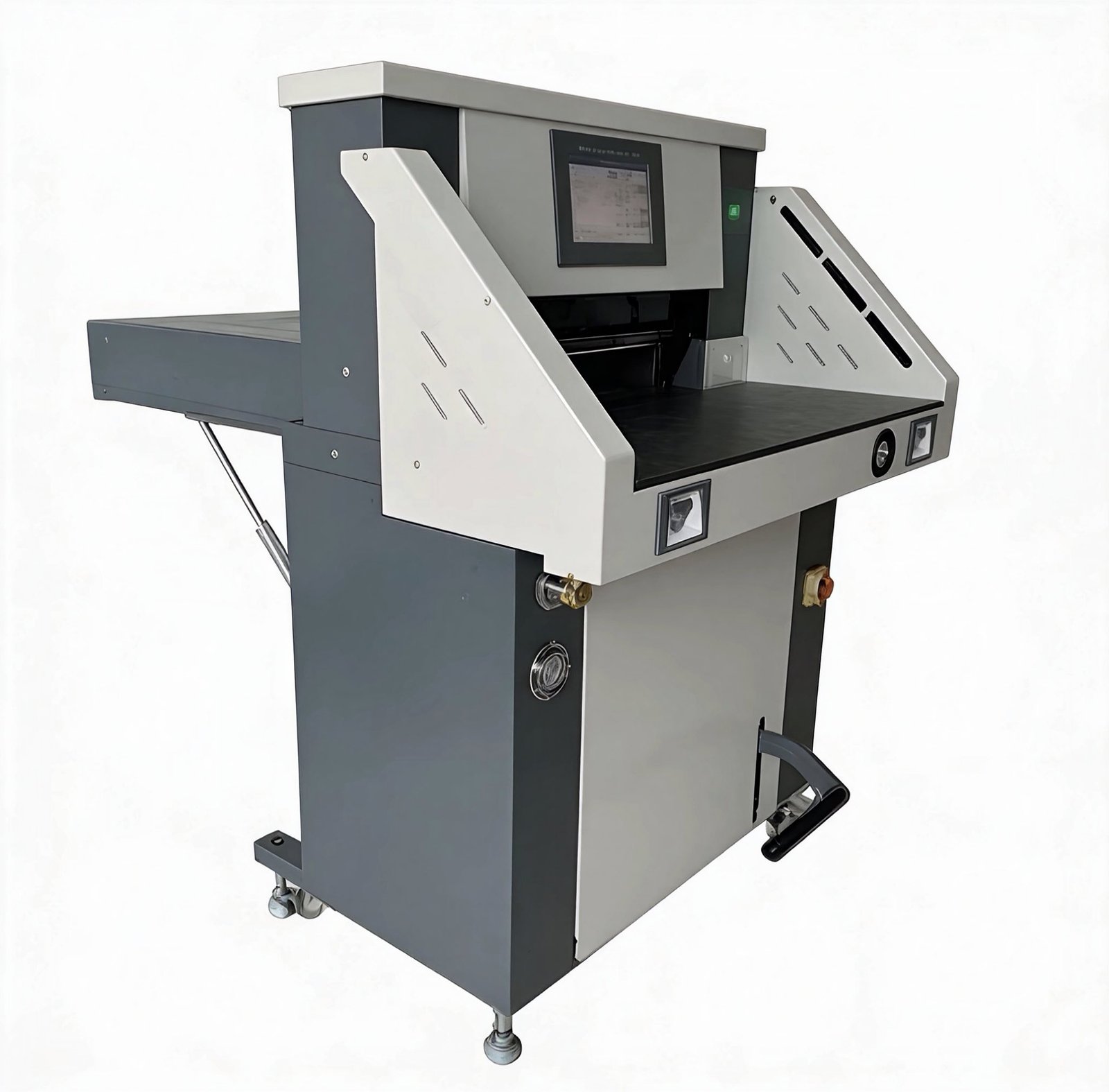

6708HP
670mm
30mm
100mm
0.2mm
Hydraulic
Program Control with Stepper Motor
10.1″ Touch Screen
220V, single phase
2200W
510mm
670mm
960mm
Air Fan, Auxiliary Platform
7208HP
720mm
30mm
80mm
0.2mm
Hydraulic
Program Control with Stepper Motor
10.1″ Touch Screen
220V, single phase
2200W
505mm
720mm
960mm
Air Fan, Auxiliary Platform
