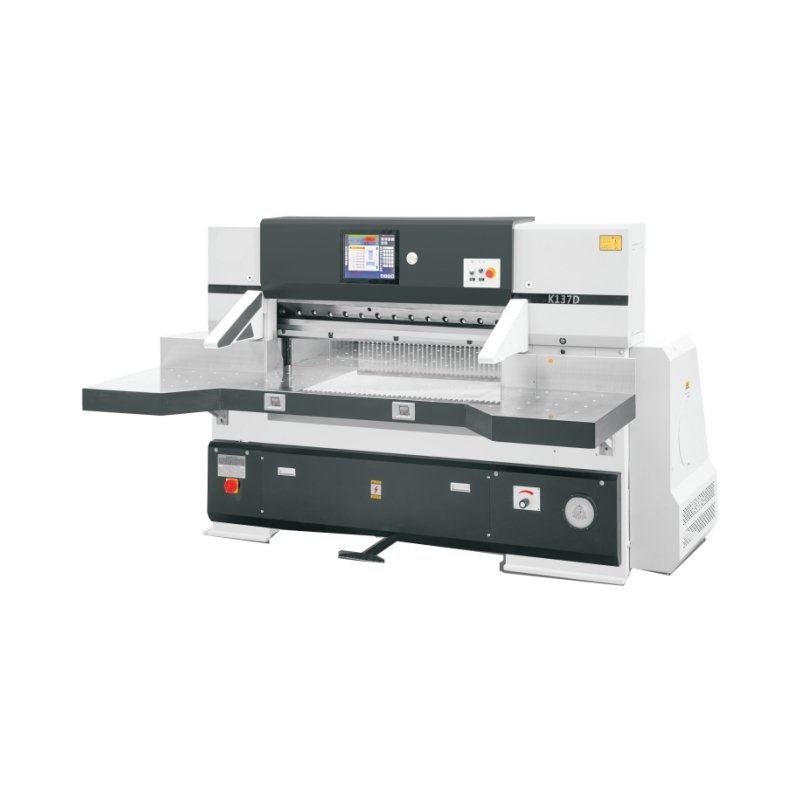

Y1370D series touch‑screen dual‑hydraulic paper cutters cover working widths from 920 mm to 1680 mm, ideal for heavy‑duty production in medium‑to‑large printing houses. The dual‑guide pusher system delivers reliable repeat positioning. Broad‑range hydraulic pressure adjustment accommodates various stock including thin sheets and thick book blocks. Full‑set safety mechanisms come as standard, while premium imported components are optional. Stable and low‑noise, these machines excel in high‑volume paper‑cutting tasks.
This Y‑series touch‑screen paper cutter is fitted with a seamless worktable and dual‑enclosed‑guide feeding system for fast and accurate pusher positioning.
High‑wear‑resistant worm‑gear reduction drive works together with a hydraulically‑controlled friction clutch, delivering stepless, wide‑range pressing‑force adjustment from 200 N up to 55 000 N to guarantee consistent cutting quality for diverse stock materials.
Complete safety configuration includes two‑hand synchronized operation, photoelectric protection and electronic knife‑lock single‑cycle cutting. Featuring low‑noise running, powerful cutting output and high cutting accuracy, the machine is built for long‑term heavy‑duty operation.
Optional premium components are available, including electric parts sourced from France, Germany, Japan and high‑speed ball‑screw assemblies from Taiwan. The hydraulic system complies with EU safety standards.
Model：
Max cutting width：
Max cutting length：
Max cutting height：
Main motor：
Weight：
cutting speed：
Y1680D
1680mm
1700mm
165mm
7.5 kw
6000 kg
45
Y1370D
1370mm
1450mm
165mm
5.5 kw
4200KG
45
Y1150D
1150mm
1160mm
165mm
4 kw
3300KG
45
Y920D
920mm
1000mm
130mm
3 kw
2400KG
45
