Paper Cutting Machine

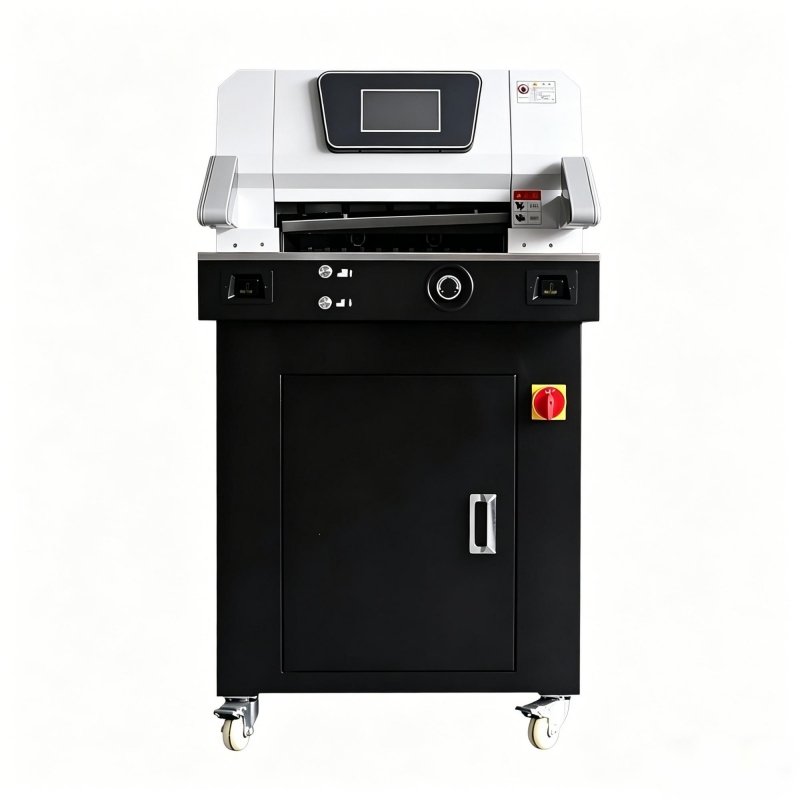

Electric Paper Cutting Machine CM460X/CM50M

STABLE
EFFICIENT AND PRECISEScope of application
Small and medium-sized printing plant graphic design and printing center design institute office center

Contact Us
  1. 7-inch industrial intelligent touch screen, built-in multiple
    operation modes, one key access, more convenient operation
  2. The integrated casting gantry is adopted to ensure the cutting
    accuracy and no deformation after long-term use
  3. The power adopts DC motor design, with constant power output,
    and the cutting force is more than twice that of AC motor
  4. The paper pushing system adopts upper suspension four head Tshaped self-locking screw rod + double guide rail mechanism, and the paper pushing accuracy is 0.1mm
  5. Overall frame design, no shaking during cutting, more stable use
  6. The independent electrical cabinet is designed to protect the circuit from dust, rats and interference
  7. The tool holder adopts double swing arm design for operation, which is not easy to wear and the cutting is smoother
  8. Suspended infrared grating protection, sensitivity 0.02s, current loop protection during operation, higher safety
  9. The new moon operating system has a light sound when cutting, which is suitable for bass environments such as office buildings
  10. The whole machine adopts four-wheel positioning, which is easy to move and fix

Model：

Max. Cutting Width：

Min. Cutting Width：

Max. Cutting Thickness：

Cutting Accuracy：

Cutting Speed:

Press Mode:

Push Mode：

Power:

Display：

Cutting Locate Point Light Line:

Infrared Light Protection:

Machine Size:

Machine Weight:

CM460X

460*460mm

25mm

0-60mm

±0.3mm

3S

Electric/DC motors

Program Control

220V/12A/700W

7 Inch Touch Screen

Yes

Yes

890*1100*1500mm

150KG

CM50M

500*500mm

25mm

0-80mm

±0.3mm

3S

Electric/DC motors

Program Control

220V/12A/800W

7 Inch Touch Screen

Yes

Yes

1160*915*1480mm

192KG
