Compatible with large-format A3 paper, supporting a maximum processing size of 300 × 630 mm.
Features a dual-fold plate design that supports various standard folding patterns, achieving a processing speed of up to 120 sheets per minute.
Equipped with a high-capacity paper tray capable of holding 500 sheets at a time, minimizing the need for frequent paper reloading.
Includes an automatic counting function with support for both forward and reverse counting, making it ideal for medium-volume production environments.

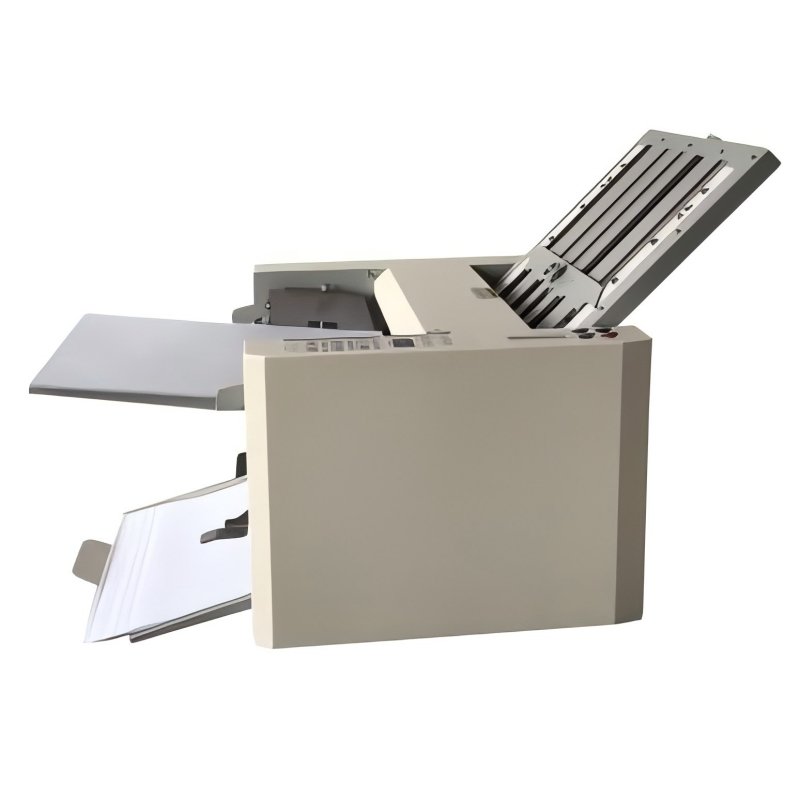

This A3/A4 two-plate folder is designed for small-to-medium volume folding tasks. Compact in size, it fits easily into small spaces and handles paper sizes up to A3/A4, supporting basic folds like half fold and accordion fold for brochures and instruction sheets. Equipped with automatic ascending/descending counters for easy batch management, it features low power consumption and reliable paper feeding, operating quietly and simply. Ideal for small copy shops and corporate print rooms.
Model：
Paper size：
Paper type：
Table capacity：
Speed：
Plates quantity：
Counter：
Dimension：
Power Supply：
Weight：
Folding type：
A3
max 300mm×630mm；min 68mm×128mm
50gsm-120gsm
500 sheets
120pcs/minute
2
4 digit ascending / 3 digit descending counter
890mm×480mm×520mm
220V 50Hz 0.35A 70W
35Kg
Basic fold types available
A4
max 220mm×360mm；min 50mm×50mm
50gsm-120gsm
300 sheets
120pcs/minute
2
4 digit ascending / 3 digit descending counter
670mm×360mm×425mm
220V 50Hz 0.35A 40W
18Kg
Basic fold types available
