Equipped with a 4-fold plate design, supporting a variety of complex folding patterns such as tri-folds, accordion folds, and cross-folds.
Features a standard creasing roller to ensure crisp, flat folds, compatible with paper weights ranging from 50 to 120 gsm.
Includes an automatic counting function with seamless switching between forward and reverse counting modes.
Capable of executing multi-fold combination processes, making it ideal for folding multi-page instruction manuals and promotional brochures.

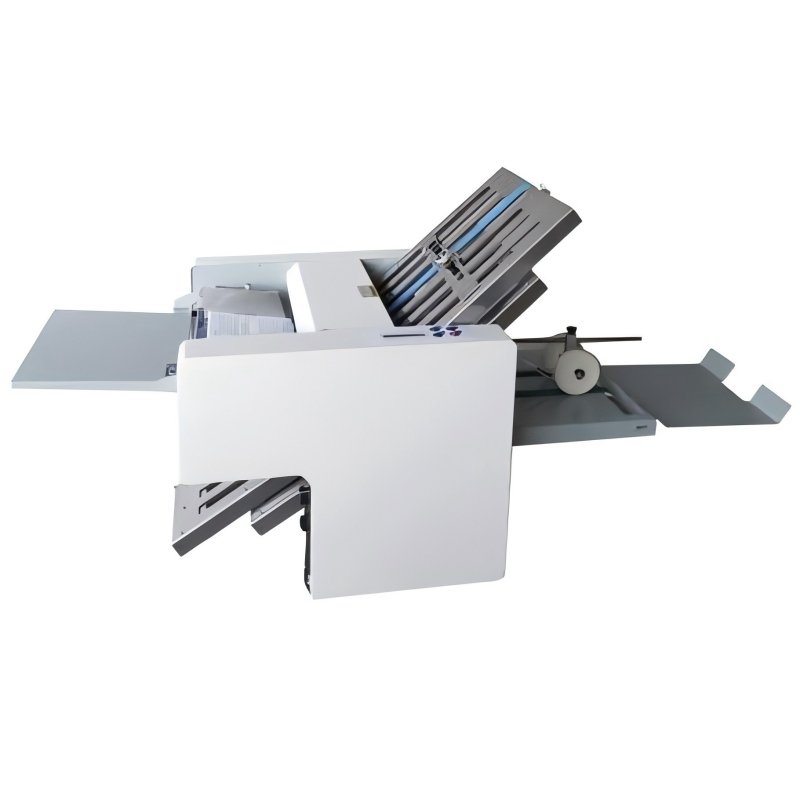

This A3 four-plate folder with line press rollers features four plates supporting complex folds like tri-fold, accordion fold, and cross fold, easily handling multi-page manuals and catalogs in large formats. Built-in line press rollers handle paper up to 180gsm, preventing crease cracking for sharp, clean folds. Variable speed from 30-200 sheets per minute adapts to different folding needs, and the 500-sheet tray with automatic counters simplifies batch management. An efficient solution for copy shops and printers with large-format complex folding requirements.
Model：
Paper size：
Paper type：
Table capacity：
Speed：
Plates quantity：
Counter：
Attachment：
Dimension：
Power Supply：
Weight：
Folding type：
A3
max 300mm×630mm；min 68mm×128mm
50gsm-180gsm
500 sheets
30-200pcs/minute
4
4 digit ascending / 3 digit descending counter
A group of line press rollers
1250mm×480mm×520mm
220V 50Hz 0.35A 130W
38Kg
Multiple fold types available

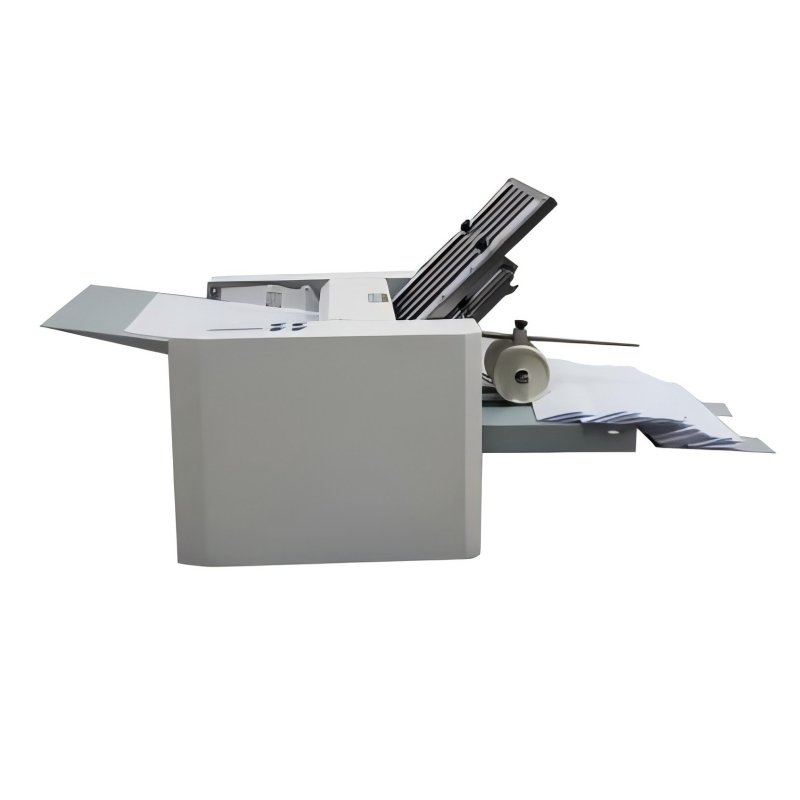

A4
max 220mm×360mm；min 50mm×80mm
50gsm-120gsm
300 sheets
120pcs/minute
4
4 digit ascending / 3 digit descending counter
A group of line press rollers
940mm×360mm×455mm
220V 50Hz 0.35A 50W
24Kg
Multiple fold types available
