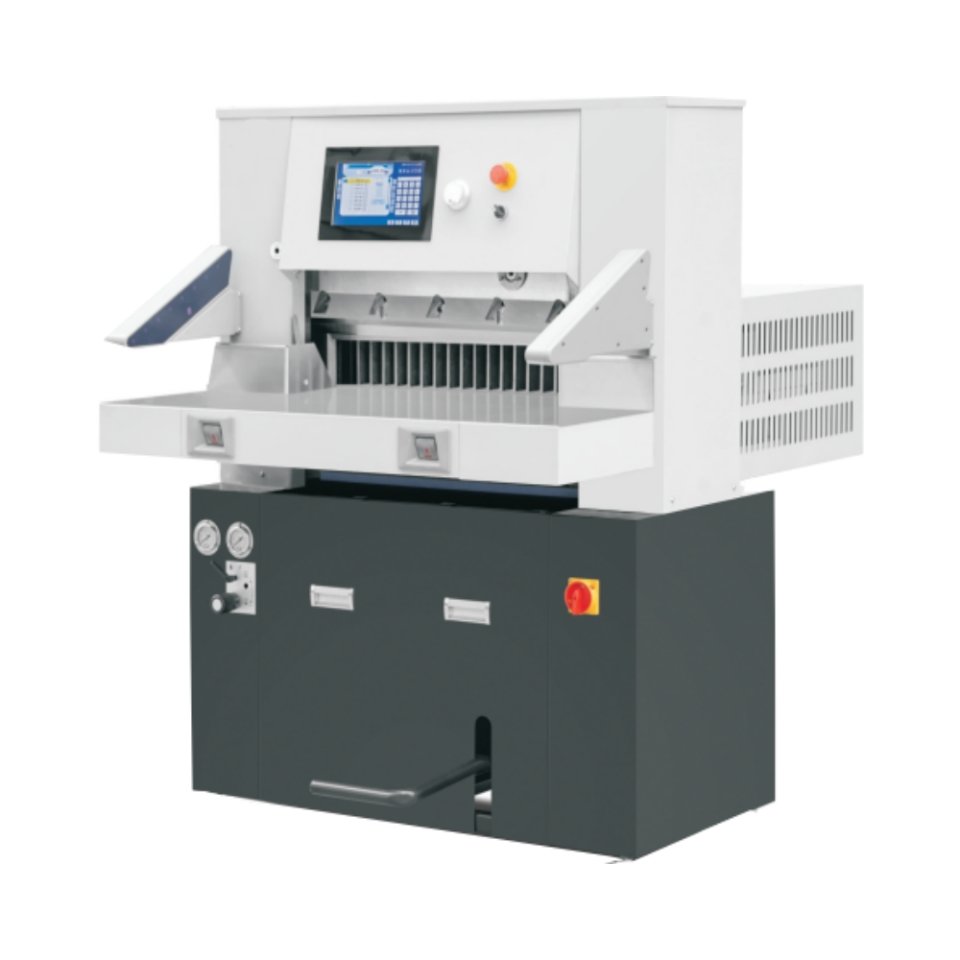

Fully‑automatic hydraulic paper cutter for post‑press finishing. Hydraulically‑powered clamping and cutting units deliver stepless pressure adjustment for various materials including thick paper and books. High‑precision feeding module ensures consistent positioning. Multiple built‑in safety components protect operators. Robust and long‑lasting, CE certified for reliable post‑press production.
This series features full‑automatic operation with a maximum cutting height of 10 cm. It delivers outstanding cutting accuracy and fast processing speed with a sturdy, long‑life build. User‑friendly design guarantees safe operation.
Its paper‑feeding unit uses a seamless chrome‑plated worktable, linear guide rails and high‑speed ball screw for high‑speed, precise positioning.
Both the paper‑clamping and cutting assemblies are hydraulically driven. Hydraulic pressure supports stepless adjustment. A wide pressure range accommodates diverse paper‑cutting jobs.
It is fitted with a photoelectric sensor, two‑hand operation buttons, cutting light line and motor‑driven knife holder. Built‑in mechanical safety mechanisms protect operators throughout the cutting cycle for safe and hassle‑free operation. The machine holds CE certification.
Model：
Max cutting width：
Max cutting length：
Max cutting height：
Main motor：
Weight：
cutting speed：
packing size：
voltage：
680E
680mm
680mm
100mm
2.2 kw
800 kg
25
175×128×175cm
380V
680D
680mm
680mm
80mm
2.2 kw
700KG
20
175×128×175cm
220V
