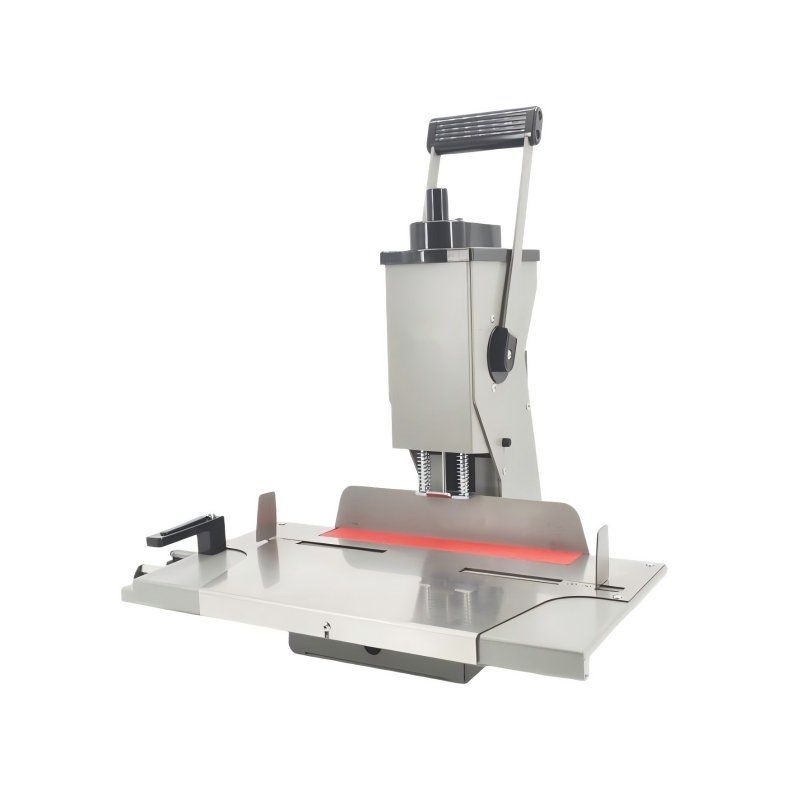

Single-Spindle Paper Drilling Machine WB50

The puncher is equipped with default settings for the hole patterns of most
common filing systems, e.g. patterns with 3, 4, and 6 holes.The integrated
center register ensures that the paper is always positioned correctly, making
time-consuming manual adjustments unnecessary.Alternate hole patterns can
be made on request and are available as an optional program bar. Versatility,
Labor-saving operation, and convenient handling.

The WB50 Electric Single-Head Paper Punch is a high-performance punching solution designed for professional offices, copy shops, and post-press processing environments. It comes factory-preset with standard hole patterns compatible with most common filing systems, supporting mainstream punching modes such as 3-hole, 4-hole, and 6-hole. It meets the punching and binding needs of contracts, archives, receipts, tenders, and other regular documents right out of the box, with no additional setup required. Equipped with a high-precision integrated center register and adjustable side guides, the punch enables quick centering, alignment, and positioning of paper, eliminating the tedious process of repeated manual adjustments during batch operations, significantly improving punching efficiency and consistency.
For special binding formats or industry-specific customization requirements, custom hole patterns are available on request, and can be quickly switched using an optional program bar to flexibly adapt to diverse punching scenarios. The machine features a labor-saving pressing mechanism and a large, anti-slip stainless steel worktable that is stable under load and easy to clean. Its core components are made of high-quality steel for exceptional durability, allowing long-term stable operation and greatly reducing maintenance costs. With a compact structure, convenient and labor-saving operation, and a perfect balance of durability and flexibility, the WB50 is an ideal device to boost document processing efficiency and ensure binding quality, making it a practical choice for copy shops, corporate administrative departments, and post-press processing workshops.

Drill Thickness:

Available Hole Dia:

Margin Adjustment:

Dimensions:

Power Supply:

Machine Weight:

≤50mm

3-8mm

8-30mm

46*43*50cm

220V,50HZ,120W

22kg

Mould:

A

B

C

D

E

Hole Qty:

3

4

4

6

4

Hole Distance:

-108-108-

-45-65-45-

-80-80-80-

-19-19-50-19-19-

-70-70-70-
