The position of the booking head can be adjusted freely
Automatic position adjustment, one click switch for A3,A4,A5, any size can be input.
Three motors are used, the stitching, folding and transmission are controlled by independent motors, stable and durable performance.
Binding and folding one complete operation, saving labor and time.
Wire binding to be economical and practical, easy for maintenance.
Saddle binding/side binding, simple mode conversion.

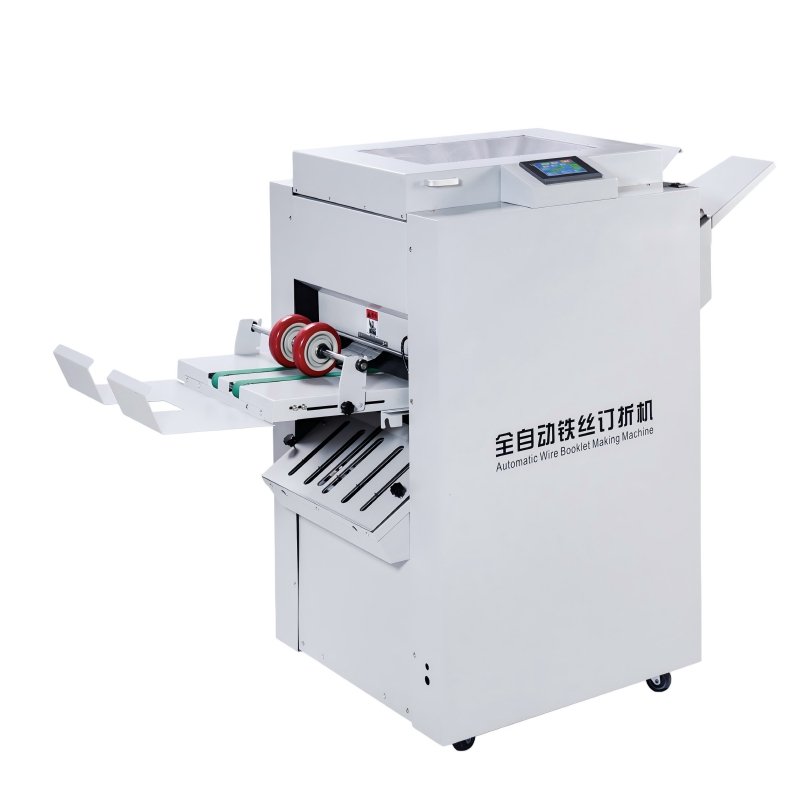

D03 Automatic Wire Booklet Maker, model D03, is a fully automatic post-press binding machine integrating stapling and folding functions, designed for saddle-stitched, side-stitched booklets, manuals, periodicals and other printed materials.
The machine supports a maximum paper size of 330×480mm and a minimum paper size of 148×210mm. It can handle 2-25 sheets of 70gsm paper for saddle stitching and a binding thickness of 2.6mm for side stitching, with a working speed of up to 2000 booklets per hour and a power supply of 220V/50HZ/300W.

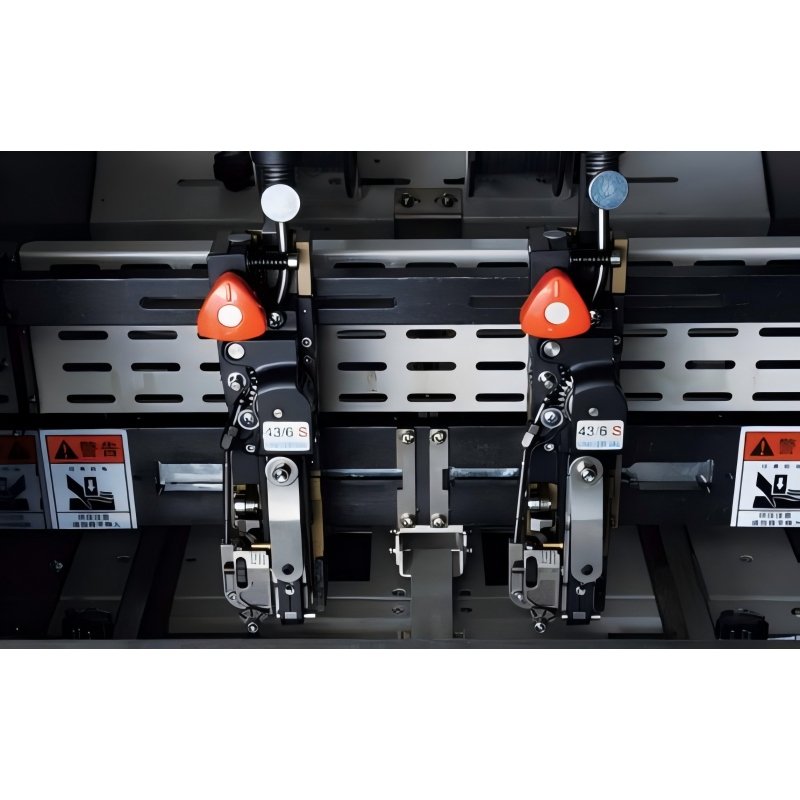

Equipped with a touch screen operation interface and Hohner stitching heads, it features side jog, back jog, automatic paper collection, automatic size adjustment and automatic head adjustment. The packing size is 950×700×1150mm and the machine weight is 169KG. Widely used in digital printing shops, printing houses and corporate document centers, it is efficient, stable and easy to operate, greatly improving post-press binding efficiency.
Model：
Max.Paper Size:
Min.Paper Size:
Binding Thickness:
Working Speed:
Power Supply:
Operation Interface:
Machine Configuration:
Packing Size:
Machine Weight:
D03
330×480mm
148×210mm
2-25 sheets(70gsm)for saddle stitching 2.6 mm for side stitching
2000 books/hour
220V/50HZ/300W
Touch Screen
Hohner Stitching Heads(side jog+back jog+collection+bottom cabinet)
950×700×1150mm
169KG
